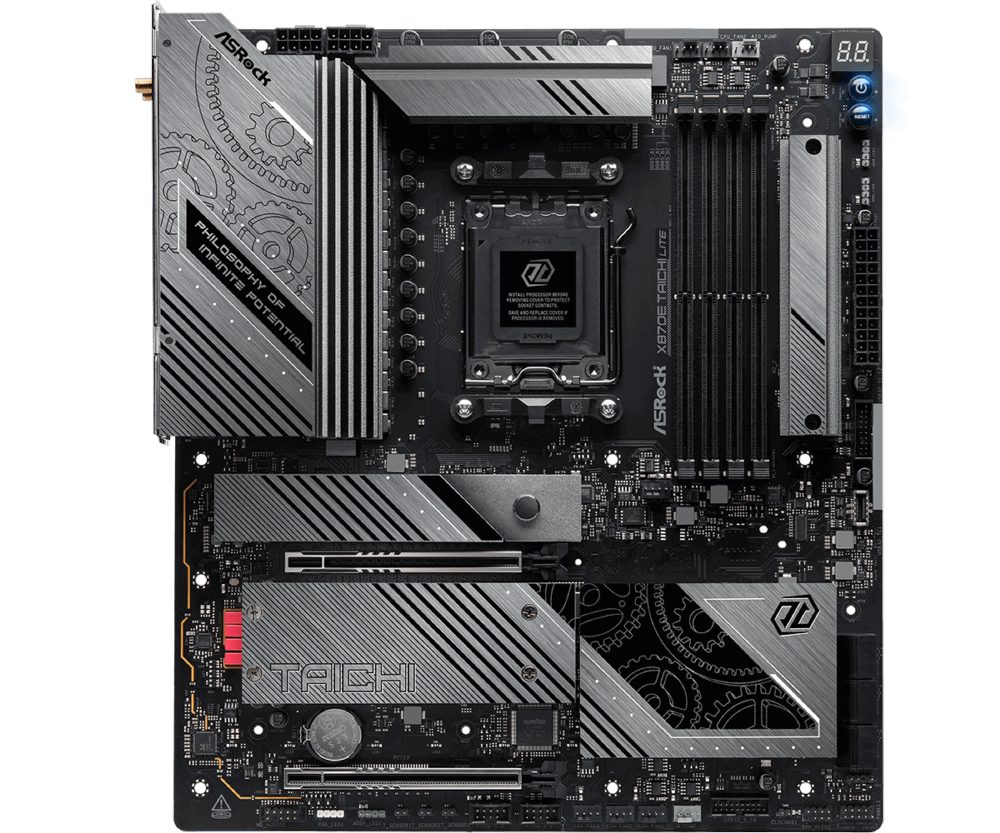

Дънна платка ASROCK X870E TAICHI LITE / AM5

Дънна платка ASROCK X870E TAICHI LITE / AM5

• Модел: X870E Taichi Lite
• Безжична връзка:
  • 802.11be 2x2 Wi-Fi 7 Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  • Supports 2.4GHz/5GHz/6GHz* frequency band
  • Supports 160MHz channel bandwidth with 6GHz* frequency band
  • 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.4
  • Supports MU-MIMO
• Bluetooth: 5.4
• Операционна система: Microsoft Windows® 10 64-bit / 11 64-bit
• Аудио:
  • 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  • WIMA Audio Capacitors (For Rear Outputs)
  • ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
  • Individual PCB Layers for R/L Audio Channel
  • Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
  • Nahimic Audio
• Памет:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
  • *Please refer to Memory Support List on ASRock's website for more information.
• Графика:
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
  • * Only the CPU's embedded graphics can be displayed through USB4 ports.
  • If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
• Слотове за разширение:
  • CPU:
  • 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
  • Chipset:
  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Supports AMD CrossFire™
• Форм-фактор:
  • EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
  • 8 Layer PCB
  • 2oz Copper PCB
• Поддържани процесори:
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Supports ASRock Hyper BCLK Engine
• Чипсет: AMD X870E
• Съхранение:
  • CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 6 x SATA3 6.0 Gb/s Connectors
  • * Supports NVMe SSD as boot disks
  • M2_1 is the first priority for M.2 installation.
  • M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
• Портове отзад:
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB4 Type-C Ports (40 Gb/s)*
  • 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
  • 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)**
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x Clear CMOS Button
  • 1 x BIOS Flashback Button
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
• Конектори:
  • 3 x Thermistor Cable Headers
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  • 1 x Dr. Debug with LED
  • 1 x Power Button with LED
  • 1 x Reset Button with LED
• Мрежа (LAN):
  • 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
  • Realtek RTL8126
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• USB:
  • CPU:
  • 2 x USB4 Type-C (Rear)
  • 2 x USB 3.2 Gen2 Type-A (Rear)
  • Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 3 x USB 3.2 Gen2 Type-A (Rear)
  • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
• RAID:
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• Сокет: AM5
