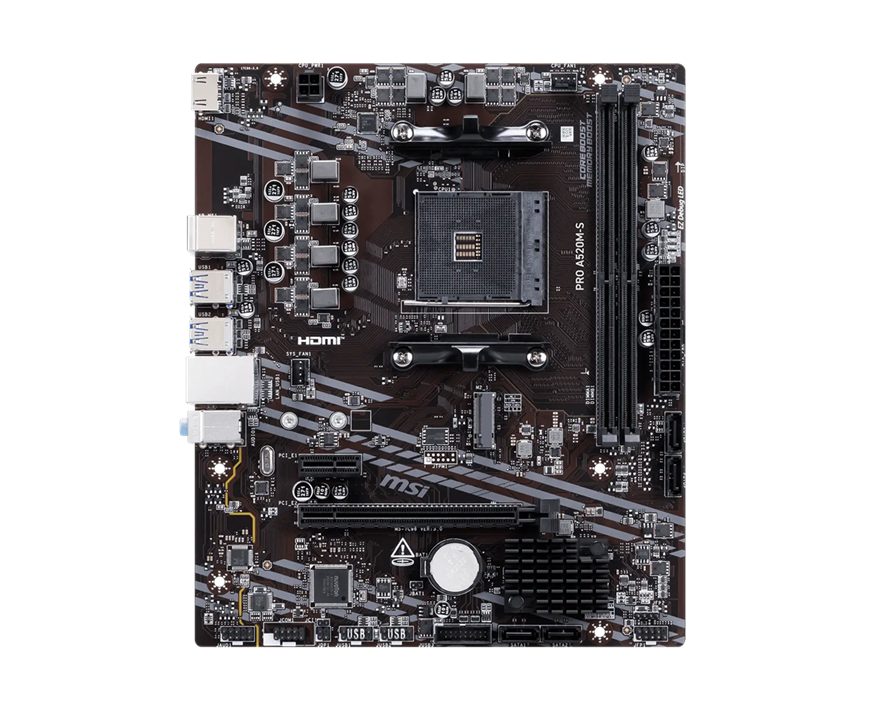

Дънна платка MSI PRO A520M-S

Дънна платка MSI PRO A520M-S

• Модел: PRO A520M-S
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  • Ryzen™ 5000 Series Processors max. overclocking:
  • 1DPC 1R Max speed up to 4600+ MT/s
  • 1DPC 2R Max speed up to 3866+ MT/s
  • Supports JEDEC Speed
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Memory Overclocking by A-XMP OC mode
• Графика:
  • 1x HDMI™
  • Support HDMITM 1.4, maximum resolution of 4K 30Hz
• Слотове за разширение:
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
• Форм-фактор: mATX, 200mmx236mm
• Поддържани процесори: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
• Чипсет: AMD A520
• Съхранение:
  • 1x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
  • 4x SATA 6G
• Портове отзад:
  • HDMI™
  • Keyboard / Mouse
  • USB 5Gbps Type-A
  • LAN Port
  • Audio connectors
  • USB 2.0
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
• Мрежа (LAN): Realtek® RTL8111H 1Gbps LAN
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
• RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Сокет: AM4
• Други: 4x EZ Debug LED
