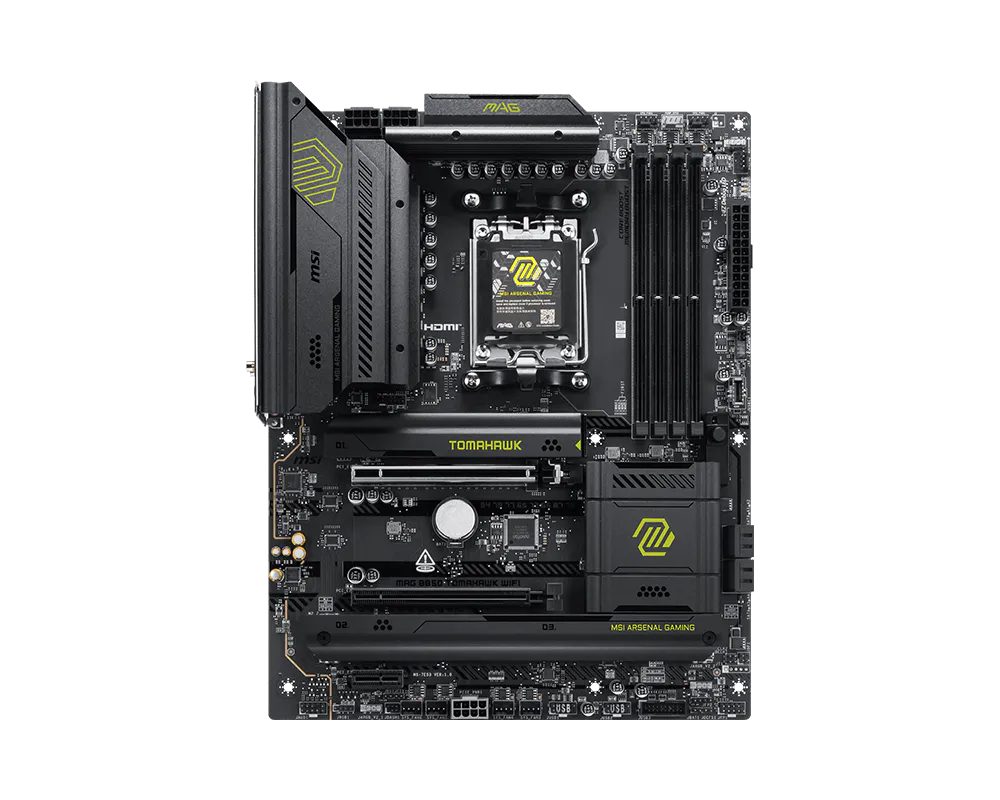

Дънна платка MSI MAG B850 TOMAHAWK WIFI

Дънна платка MSI MAG B850 TOMAHAWK WIFI

• Размери:
  • ATX
  • 243.84mmx304.8mm
• Безжична връзка:
  • Wi-Fi 7 Solution
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
  • * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  • ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• Bluetooth: Supports Bluetooth® 5.4**, MLO, 4KQAM
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC4080 Codec
  • 7.1-Channel USB High Performance Audio
  • Supports up to 32-bit/384kHz playback on front panel
  • Supports S/PDIF output
• Памет:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO™
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
• Графика:
  • 1x HDMI™
  • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz
• Слотове за разширение:
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
• Поддържани процесори: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Чипсет: AMD B850
• Съхранение:
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
  • M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M2_2 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
  • M2_3 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • * Please refer to the manual for M.2 SSD heatsink restrictions
• Портове отзад:
  • Clear CMOS Button
  • USB 10Gbps Type-A
  • USB 5Gbps Type-A
  • USB 2.0
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 10Gbps Type-C
  • USB 20Gbps Type-C
  • USB 10Gbps Type-A
  • Optical S/PDIF Out
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 6x System Fan
  • 1x EZ Conn-header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 2x Direct OC Jumper (JBCLK)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• Мрежа (LAN): Realtek® 8126VB 5G LAN
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
• RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• Сокет: Socket AM5
• Други:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
