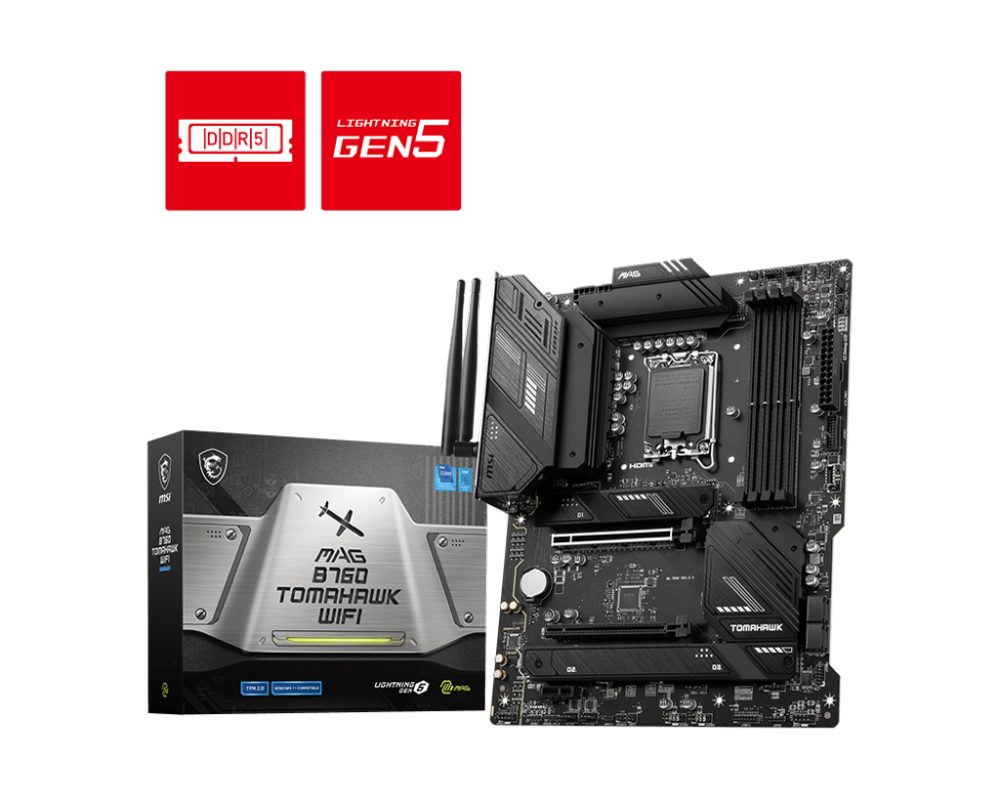

Дънна платка MSI MAG B760 TOMAHAWK WIFI

Дънна платка MSI MAG B760 TOMAHAWK WIFI

• Операционна система: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel USB High Performance Audio
  • Supports S/PDIF output
• Памет:
  • 4x DDR5, Maximum Memory Capacity 128GB
  • Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile
• Графика:
  • 1x HDMI™
  • 1x DisplayPort
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • Support DP 1.4, maximum resolution of 8K 60Hz*
• Слотове за разширение:
  • 2x PCI-E x16 slot
  • Supports x16/x4
  • 1x PCI-E x1 slot
  • PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)
  • PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
• Форм-фактор: ATX,243.84mmx304.8mm
• Чипсет: INTEL B760
• Съхранение:
  • 3x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  • M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G port
• Портове отзад:
  • USB 2.0
  • DisplayPort 1.4
  • USB 3.2 Gen 2 10Gbps Type-A
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI™ 2.1 Port
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • Optical S/PDIF OUT
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 5x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C
• Мрежа (LAN): Realtek® 2.5Gbps LAN
• Други:
  • Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3, FIPS, FISMA
