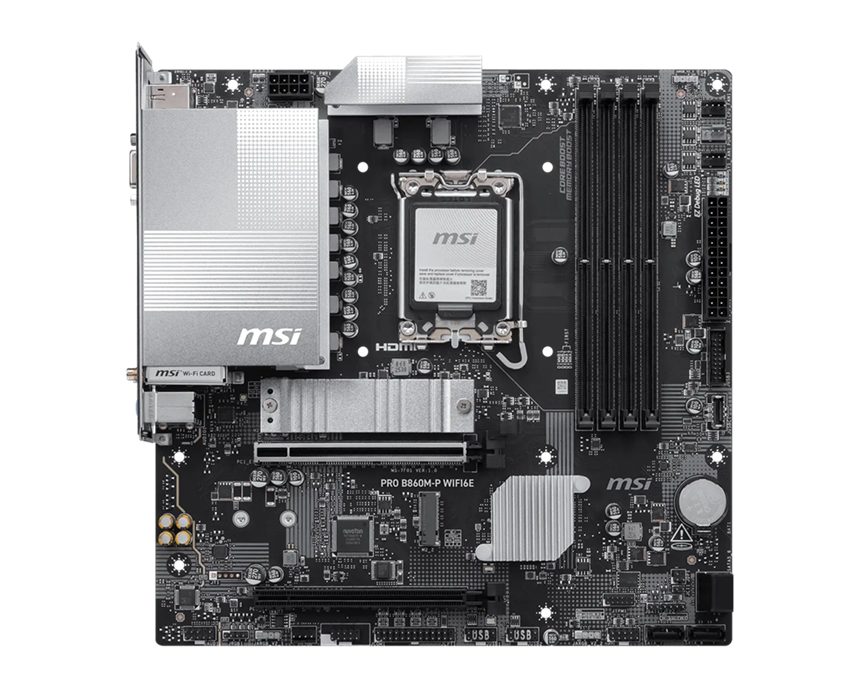

Дънна платка MSI PRO B860M-P WIFI6E

Дънна платка MSI PRO B860M-P WIFI6E

• Модел: PRO B860M-P WIFI6E
• Безжична връзка:
  • Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
• Bluetooth: Supports Bluetooth® 5.3**, FIPS, FISMA
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  • Max. overclocking:
  • 1DPC 1R Max speed up to 8800+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s
  • Supports Intel® POR Speed and JEDEC Speed
  • Supports Memory Overclocking and Intel® XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM
• Графика:
  • 1x HDMI™
  • Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*
  • 2x DisplayPort
  • Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*
  • 1x VGA
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• Слотове за разширение:
  • 2x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Форм-фактор: mATX, 243.84mmx243.84mm
• Поддържани процесори: Supports Intel® Core™ Ultra Processors (Series 2)
• Чипсет: INTEL B860
• Съхранение:
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
  • *Please refer to the manual for M.2 SSD heatsink restrictions.
• Портове отзад:
  • DisplayPort
  • VGA
  • USB 2.0
  • USB 5Gbps Type-A
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • HDMI™
  • DisplayPort
  • Clear CMOS Button
  • USB 5Gbps Type-A
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• Мрежа (LAN): Realtek® 8125 2.5Gbps LAN
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 3x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Сокет: LGA 1851
• Други:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
