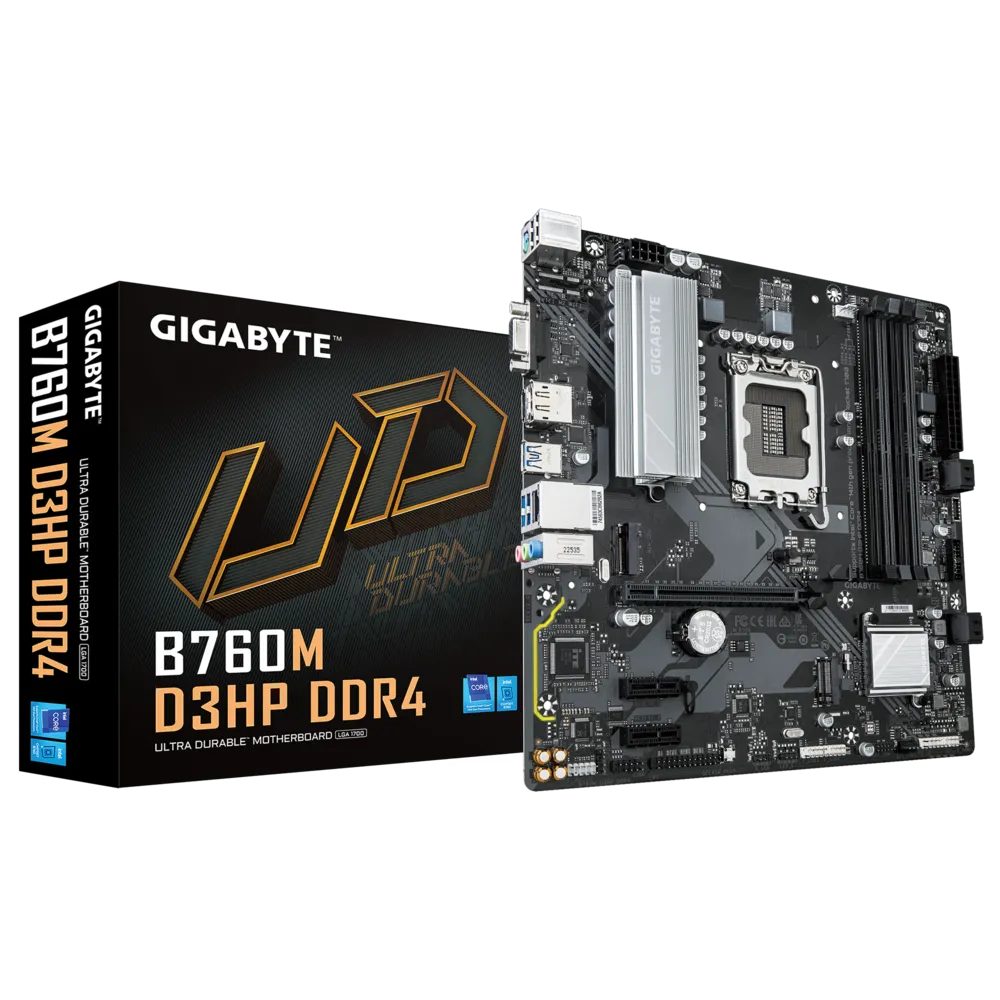

Дънна платка GB B760M D3HP DDR4 /LGA1700

Дънна платка GB B760M D3HP DDR4 /LGA1700

• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Памет:
  • Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)
• Графика:
  • Integrated Graphics Processor-Intel® HD Graphics support
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • ** Support for native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
• Слотове за разширение:
  • CPU
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  • Chipset
  • 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
• Форм-фактор:
  • Micro ATX Form Factor
  • 24.4cm x 24.4cm
• Конектори:
  • iTE® I/O Controller Chip
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x parallel port header
  • 1 x S/PDIF Out header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
• Чипсет: Intel® B760 Express Chipset
• Съхранение:
  • CPU
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• Портове отзад:
  • Chipset
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Мрежа (LAN): Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• BIOS:
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
