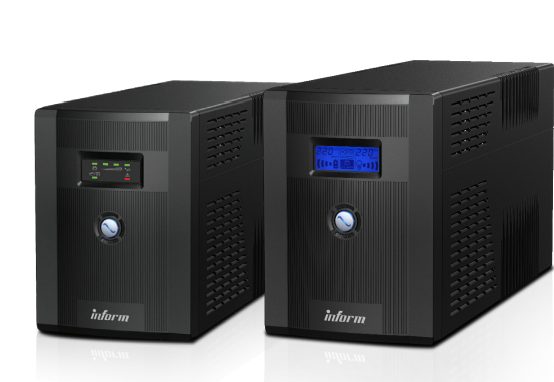

UPS GUARDIAN 800AP 800VA/AVR

UPS GUARDIAN 800AP 800VA/AVR

• Модел: GUARDIAN 800A
• Тип: Line-interactive
• Капацитет: 800 VA
• Input:
  • Voltage: 220V or 230V
  • Input Voltage Range: 172 to 286VAC
  • Frequency: 50 or 60 Hz (auto sensing).
• Output:
  • Power Factor: 0.6
  • Voltage (On battery): 220V or 230V ± 1t0%
  • Waveform (On battery): Simulated Sinewave
  • Frequency (On battery): 50 or 60 Hz ± 1Hz
  • Voltage Regulation (AVR) :AVR automatically increases output voltage 15% above input voltage if -10% to -26% of nominal. AVR automatically decreases output voltage 15% below input voltage if +10% to +22% of nominal
  • Transfer Time: 2 - 6 ms
  • Outlets: 1 pc Schuko & 1 pc IEC C13.
• Интерфейс: USB Port and Software available only AP models
• Батерия:
  • Type: Maintenance-free lead acid batteries
  • Recharge Time: 6 hours ( to 90% of full capacity)
  • Voltage: 12VDC
  • Quantity:1x12V 9Ah.
• Дисплей:
  • LED Display: Fault, Battery Mode, AC Mode
  • LCD Display (optional): Input & Output Voltage values, AC mode / Load Level / Battery Capacity Indicators.
• Стандарти: EN 62040-1-1 (safety), EN 62040-2(EMC)
• Environment:
  • Operating Temperature: 0-40 °C
  • Humidity: 0 to 95% non-condensing
  • Audible Noise at 1m: <40dBA
  • Protection class: IP20.
• Размери: 101x298x142 mm
• Тегло: 4.70 kg
