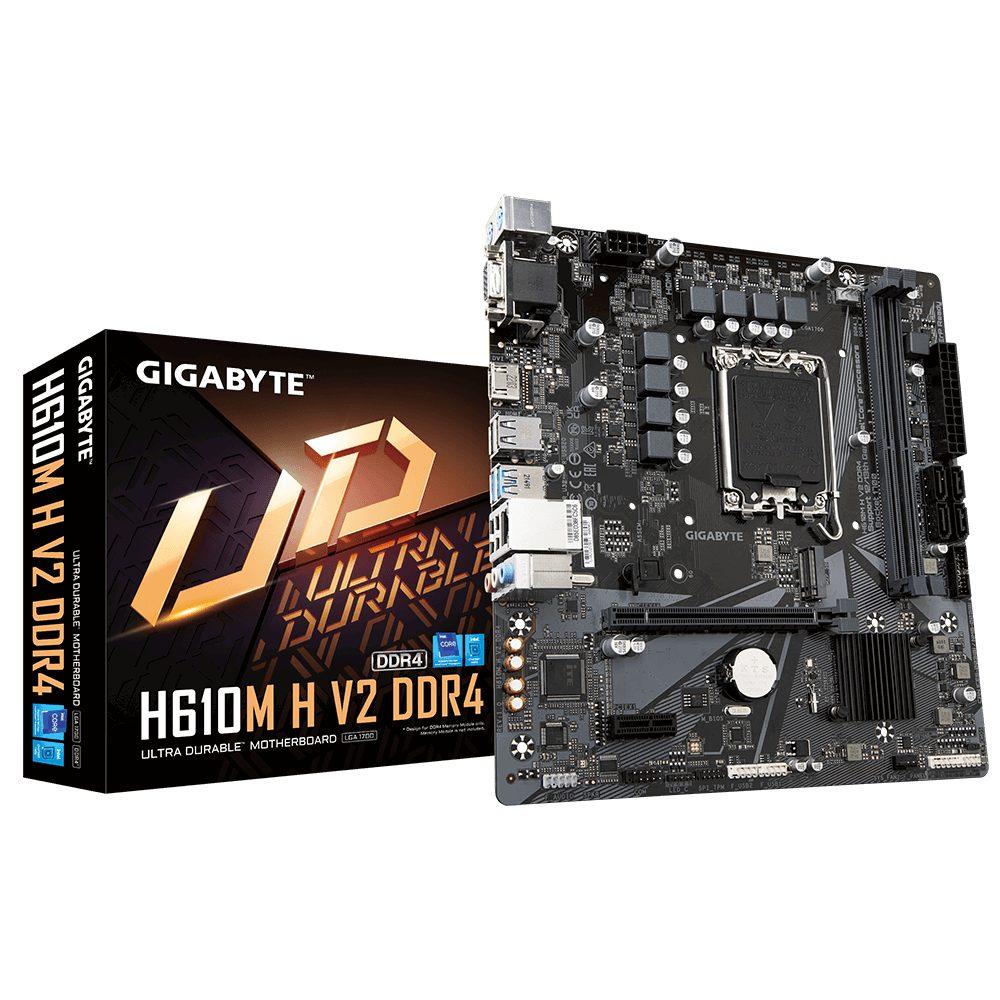

Дънна платка GB H610M H V2 /LGA1700

Дънна платка GB H610M H V2 /LGA1700

• Аудио:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Операционна система:
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
  • Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
• Памет:
  • 14th and 13th Generation Intel® Core™ i9/i7 Pocessors
  • Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  • 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • Support for DDR5 4800/4400 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Графика:
  • Integrated Graphics Processor-Intel® HD Graphics support
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Слотове за разширение:
  • CPU
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  • Chipset
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Форм-фактор:
  • Micro ATX Form Factor
  • 22.3cm x 19.6cm
• Конектори:
  • Internal I/O Connectors:1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header
  • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
• Поддържани процесори: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• Чипсет: Intel® H610 Express Chipset
• Съхранение:
  • Chipset
  • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors
• Портове отзад: iTE® I/O Controller Chip
• Мрежа (LAN): Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
• BIOS:
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
