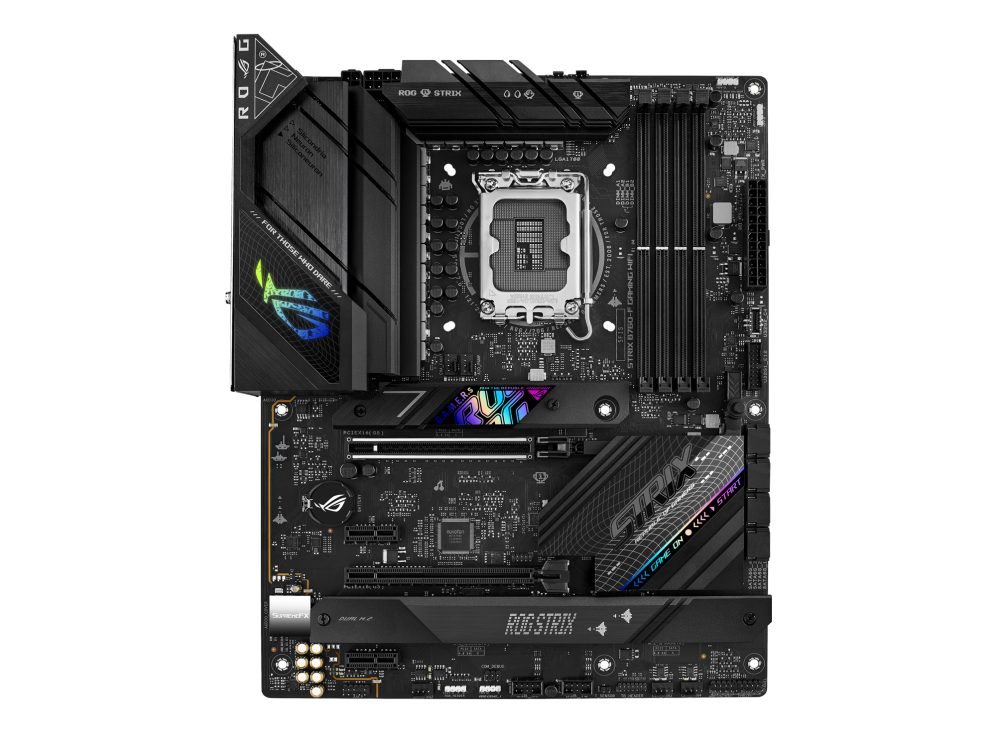

Дънна платка ASUS ROG STRIX B760-F GAM WIFI

Дънна платка ASUS ROG STRIX B760-F GAM WIFI

• Аудио:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback"
  • Audio Features
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Audio cover
• Операционна система: Windows® 11, Windows® 10 64-bit
• Памет:
  • 4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
• Графика:
  • 1 x DisplayPort**
  • 1 x HDMI® port***
• Слотове за разширение:
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0x16 slot (supports x16 mode)**
  • Intel® B760 Chipset**
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)***
  • 2 x PCIe 3.0 x1 slots
• Форм-фактор:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Конектори:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 xThunderbolt™ (USB4®) header
• Чипсет: Intel® B760 Chipset
• Съхранение:
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset**
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
  • 4 x SATA 6Gb/s ports
• Портове отзад:
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 6 x USB 3.2 Gen 1 ports (6 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks *
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Мрежа (LAN):
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Други:
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3**
