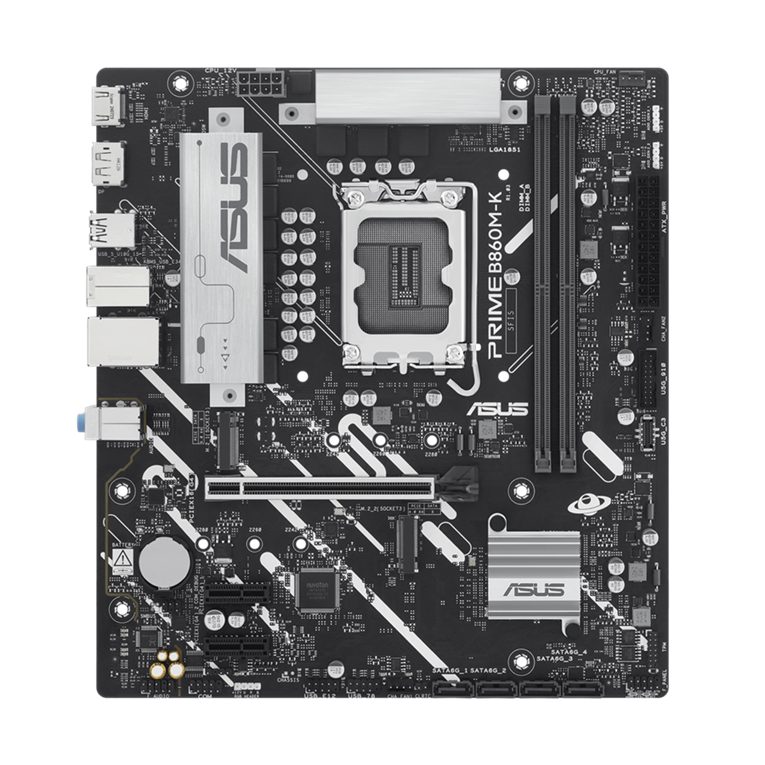

Дънна платка ASUS PRIME B860M-K

Дънна платка ASUS PRIME B860M-K

• Аудио:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
• Операционна система: Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
• Памет:
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
• Графика:
  • 1 x DisplayPort
  • 1 x HDMI™ port
• Слотове за разширение:
  • Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 4.0 x16 slot
  • Intel® B860 Chipset
  • 2 x PCIe 4.0 x1 slots
• Форм-фактор:
  • micro-ATX Form Factor
  • 24.4cm x 22.2cm
• Конектори:
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connectorStorage Related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 5Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 2 x Addressable Gen2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front Panel System header
• Поддържани процесори:
  • Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Чипсет: Intel® B860 Chipset
• Съхранение:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • Intel® B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
• Портове отзад:
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 3 x USB 2.0 ports (3 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMITM port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Мрежа (LAN):
  • 1 x Realtek 2.5Gb Ethernet
  • ASUS LANGuard
• BIOS: 256(128+128) Mb Flash ROM, UEFI AMI BIOS
• USB:
  • Rear USB (Total 6 ports)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 3 x USB 2.0 ports (3 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 5Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
