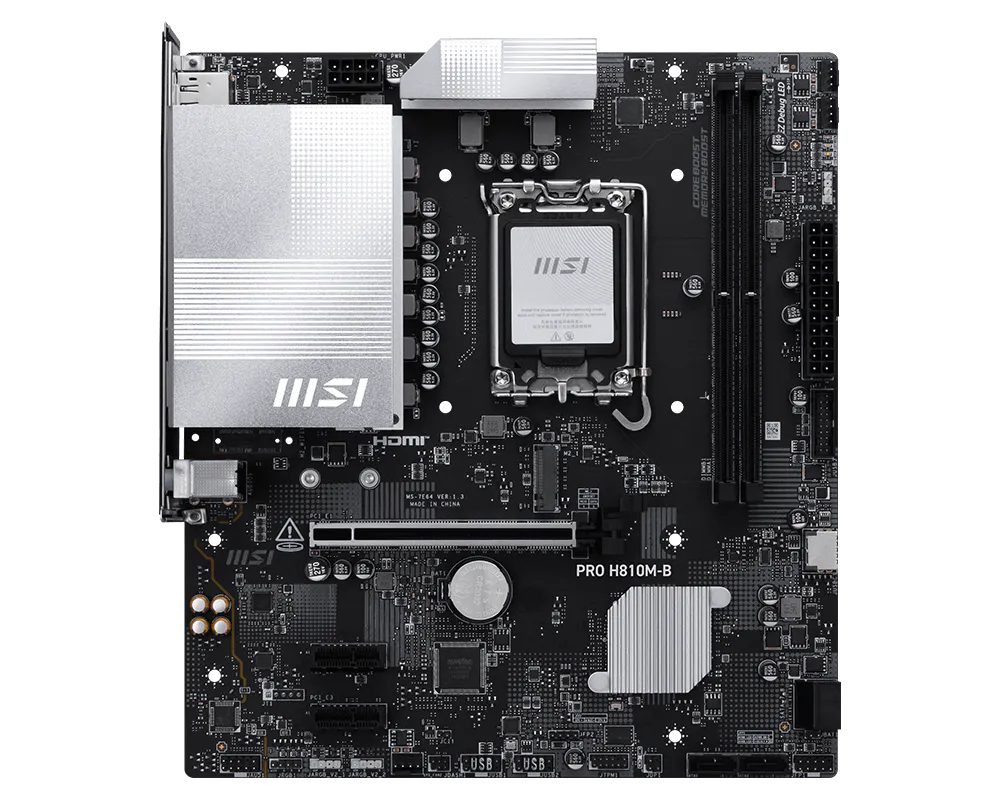

Дънна платка MSI PRO H810M-B

Дънна платка MSI PRO H810M-B

• Размери: mATX, 220mmx243.84mm
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Памет:
  • 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
  • Memory Support DDR5 7200 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200 MT/s
  • 1DPC 2R Max speed up to 6400 MT/s
  • Supports Intel® POR Speed and JEDEC Speed
  • Supports Intel® XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM
  • The DIMM slots on this motherboard have double-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
• Графика:
  • 1x HDMI™
  • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Слотове за разширение:
  • 1x PCI-E x16 slot
  • 2x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
• Поддържани процесори: Supports Intel® Core™ Ultra Processors (Series 2)
• Чипсет: INTEL H810
• Съхранение:
  • 1x M.2
  • M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G
  • *Please refer to the manual for M.2 SSD heatsink restrictions.
• Портове отзад:
  • DisplayPort
  • USB 2.0
  • USB 5Gbps Type-A
  • 2.5G LAN
  • Audio Connectors
  • HDMITM
  • USB 2.0
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• Мрежа (LAN): Realtek® 8125 2.5Gbps LAN
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 10Gbps Type C (Front)
• Сокет: LGA 1851
• Други:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
