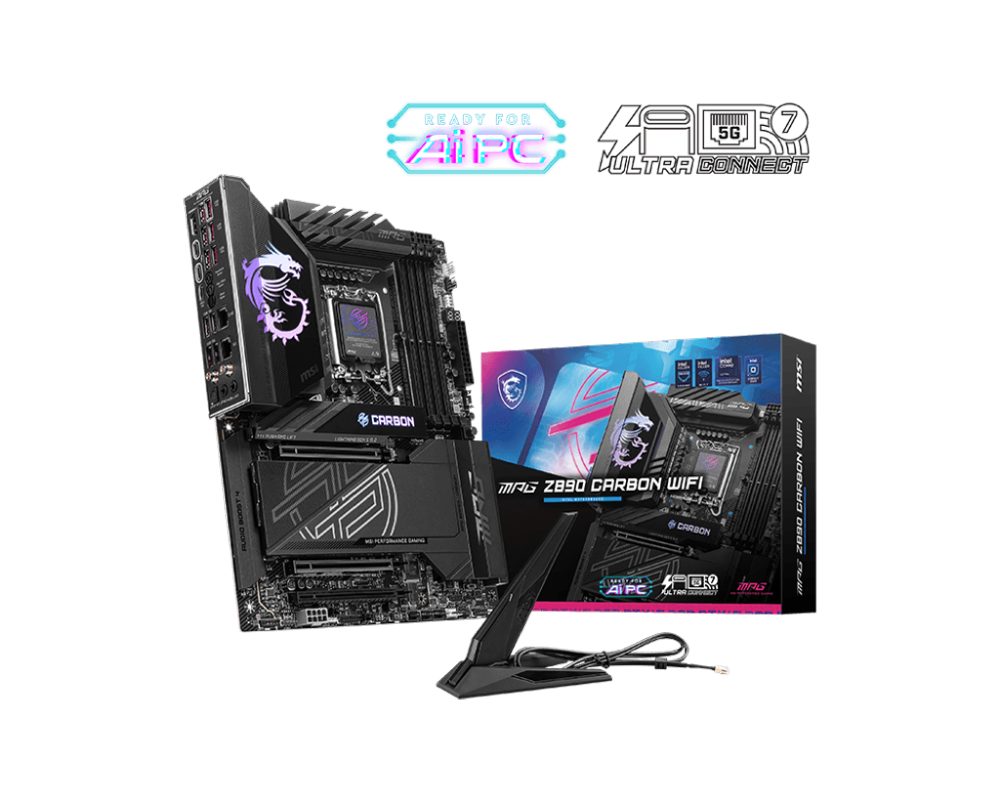

Дънна платка MSI MPG Z890 CARBON WIFI /1851

Дънна платка MSI MPG Z890 CARBON WIFI /1851

• Безжична връзка:
  • Intel® Killer™ BE1750x Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Bluetooth: 5.4
• Операционна система: Support for Windows® 11 64-bit
• Аудио:
  • Realtek® ALC1220P Codec
  • 7.1-Channel USB High Defination Audio
  • Supports S/PDIF output
• Памет:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 9200+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 4800+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s
  • Supports Intel POR Speed and JEDEC Speed
  • Supports Memory Overclocking and Intel XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM
• Графика:
  • 1x HDMI™
  • Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
  • 2x Type-C DisplayPort
  • ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
• Слотове за разширение:
  • 3x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E1 supports BIOS adjustment to x8+x4+x4
  • PCI_E2 supports BIOS adjustment to x4+x4
• Форм-фактор: ATX 243.84mmx304.8mm
• Чипсет: INTEL Z890
• Съхранение:
  • 5x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
  • 4x SATA 6G
  • Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
• Портове отзад:
  • 2x Thunderbolt4 ports (Rear)
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Front)
  • 10x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)
• Конектори:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x Front Type-C Quick Charge Connector(PD_PWR1)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 5x System Fan
  • 1x EZ Conn-header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Water Flow connector
  • 1x Front Audio (JAUD)
  • 1x Thermal Sensor connectors(T_SEN)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports
• Мрежа (LAN):
  • 1x Intel® Killer™ E5000B 5G LAN
  • 1x Intel® I226V 2.5G LAN
